Class Loader and Execution Engine

This chapter covers two core JVM internals from your diagrams:

  • Class Loader Subsystem
  • Execution Engine

1. Class Loader Subsystem

Class Loader is responsible for bringing class bytecode into JVM runtime.

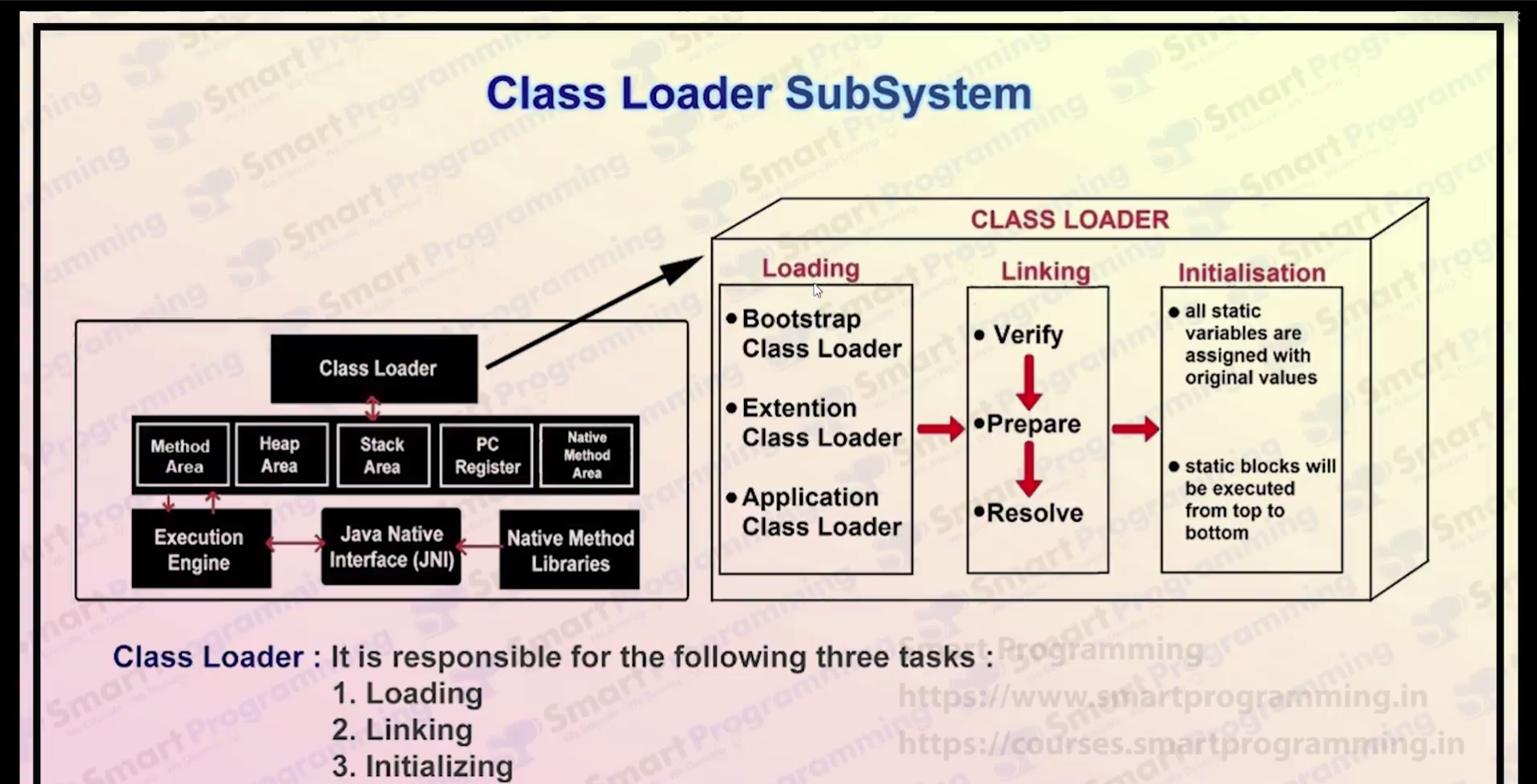

Class loader subsystem

Three major phases

  1. Loading
  2. Linking
  3. Initialization

2. Loading Stage

Class loader fetches .class bytecode and creates runtime class representation.

Common class loaders

  • Bootstrap Class Loader
  • Extension (Platform) Class Loader
  • Application Class Loader

3. Linking Stage

Linking has three sub-steps:

  1. Verify: Bytecode validation for safety/correctness.
  2. Prepare: Allocate memory for static fields with default values.
  3. Resolve: Convert symbolic references to direct references.

4. Initialization Stage

  • Assign explicit static variable values.
  • Execute static blocks in class initialization order.

5. Execution Engine

Execution engine runs bytecode after class loading and verification.

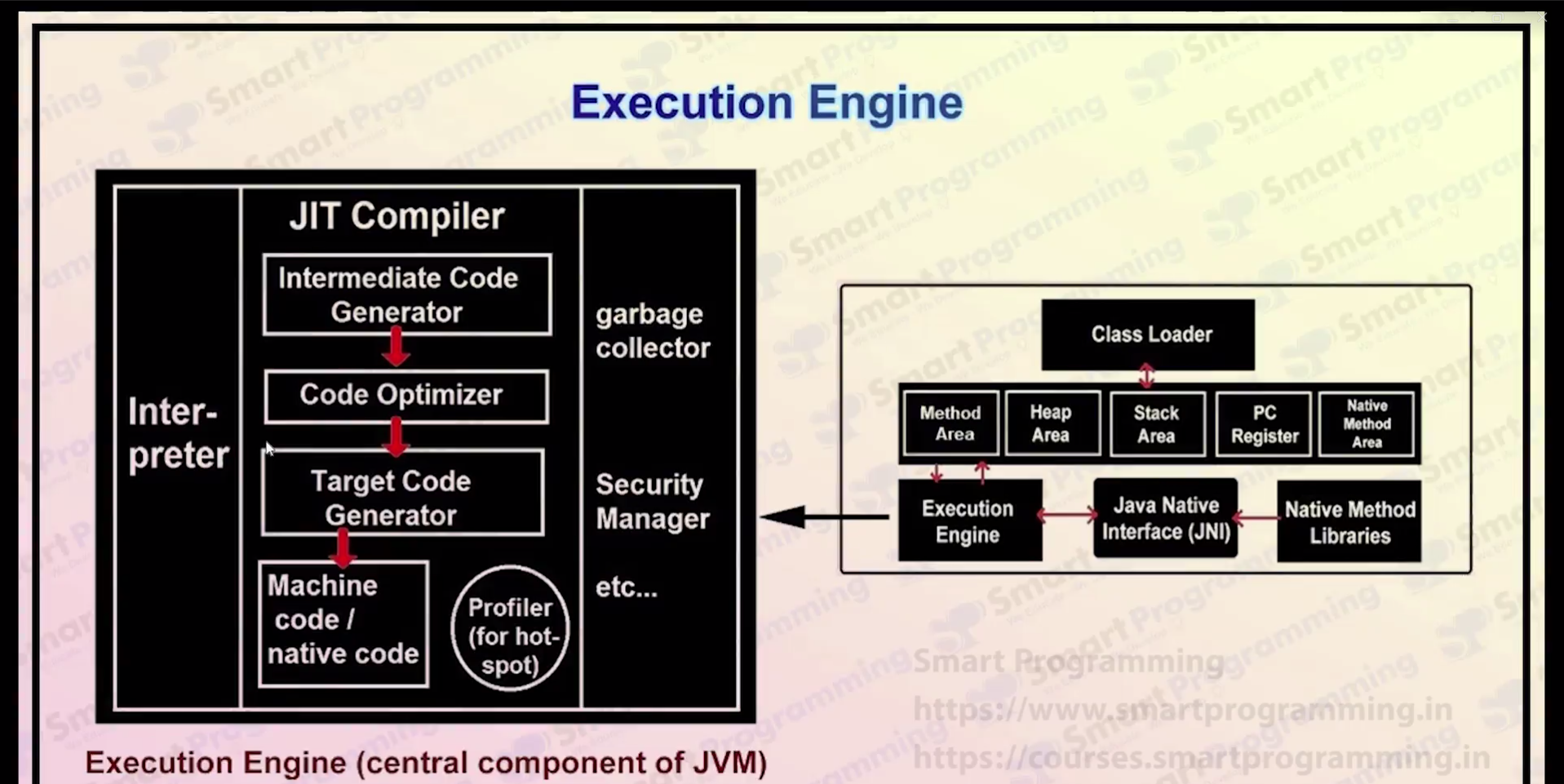

Execution engine internals

Core parts

  1. Interpreter

    • Executes bytecode line-by-line.
    • Fast startup, slower repeated execution.

  2. JIT Compiler (Just-In-Time)

    • Detects hot code (frequently executed code paths).
    • Converts bytecode to native machine code.
    • Improves runtime performance significantly.

  3. Garbage Collector

    • Reclaims memory from unreachable objects.

  4. Security and Runtime Services

    • Includes safety and profiling support in JVM runtime.

6. JNI and Native Libraries

  • JNI (Java Native Interface) allows Java code to call native code (C/C++ etc.).
  • Native Method Libraries provide OS-level native implementations.

7. Runtime Flow Summary

Class Loader -> Memory Areas -> Execution Engine
                         <-> JNI <-> Native Libraries

8. Quick Interview Answers

Q: What are Class Loader phases?
Loading, Linking (Verify/Prepare/Resolve), Initialization.

Q: Why does JVM use both Interpreter and JIT?
Interpreter gives quick startup; JIT optimizes hot code for high performance during long execution.

Q: What is role of JNI?
JNI is a bridge between Java runtime and native platform libraries.
